中华胃食管反流病电子杂志 ›› 2025, Vol. 12 ›› Issue (03) : 95 -99. doi: 10.3877/cma.j.issn.2095-8765.2025.03.001

论著

应用多层螺旋CT多平面重建技术建立食管裂孔面积正常参考值及其与食管横截面积的比值
石钊琪1, 陈其龙1, 陶知知2, 黄迪宇1,()
  1. 1310000 杭州,浙江大学医学院附属邵逸夫医院普外科
    2310000 杭州,浙江大学医学院附属邵逸夫医院放射科
  • 收稿日期:2025-03-24 出版日期:2025-08-15
  • 通信作者: 黄迪宇

Normal reference values for hiatal surface area and establishment of the esophageal/hiatal area ratio using multidetector computed tomography with multiplanar reconstruction technique

Zhaoqi Shi1, Qilong Chen1, Zhizhi Tao2, Diyu Huang1,()

  1. 1Department of General Surgery, Sir Run Run Shaw Hospital, Zhejiang University School of Medicine, Hangzhou 310010, China
    2Department of Radiology, Sir Run Run Shaw Hospital, Zhejiang University School of Medicine, Hangzhou 310010, China
  • Received:2025-03-24 Published:2025-08-15
  • Corresponding author: Diyu Huang
引用本文:

石钊琪, 陈其龙, 陶知知, 黄迪宇. 应用多层螺旋CT多平面重建技术建立食管裂孔面积正常参考值及其与食管横截面积的比值[J/OL]. 中华胃食管反流病电子杂志, 2025, 12(03): 95-99.

Zhaoqi Shi, Qilong Chen, Zhizhi Tao, Diyu Huang. Normal reference values for hiatal surface area and establishment of the esophageal/hiatal area ratio using multidetector computed tomography with multiplanar reconstruction technique[J/OL]. Chinese Journal of Gastroesophageal Reflux Disease(Electronic Edition), 2025, 12(03): 95-99.

目的

测量健康成人的食管裂孔面积(HSA)与食管横截面积(ESA),建立HSA正常参考值并计算ESA/HSA比值,为食管裂孔疝(HH)的诊断提供形态学依据。

方法

回顾性分析2022年11月至2024年12月于浙江大学医学院附属邵逸夫医院接受24 h食管pH阻抗监测的受试者资料。在监测前后6个月内受试者需完成高分辨率食管测压(HRM)、上消化道内镜及上腹部/胸部增强CT检查。排除存在典型反流症状、反流参数异常(酸暴露时间>4%或DeMeester评分>14.72分)、内镜或影像学确诊HH、HRM异常、既往存在膈肌或HH手术史、病历资料不全者。通过多层螺旋CT图像进行多平面重建,测量受试者HSA与ESA,并计算ESA/HSA比值。采用独立样本t检验比较不同性别上述指标的差异,采用Pearson相关分析年龄与HSA、ESA的相关性。以P<0.01为差异有统计学意义。

结果

最终纳入39例受试者,其中男性13例(33.3%)、女性26例(66.7%),年龄为(52±14)岁。HSA为(228.4±52.9)mm2,ESA为(140.8±42.1)mm2,ESA/HSA比值为0.61±0.10。性别比较显示,男性与女性HSA分别为(245.6±48.3)mm2与(222.5±54.1)mm2,ESA分别为(145.2±39.8)mm2与(135.4±43.5)mm2,差异均无统计学意义(P均>0.01)。年龄与HSA(r=0.306,P=0.059)、ESA(r=0.348,P=0.030)均无相关性。

结论

本研究首次报道了健康成人HSA与ESA的正常参考值及ESA/HSA比值,该比值有望作为评估食管裂孔功能状态的新型形态学指标,为HH的精准诊断提供参考依据。

Objective

To measure the esophageal hiatus area (HSA) and esophageal cross-sectional area (ESA) in healthy adults, establish the normal reference value for HSA, and calculate the ESA/HSA ratio, thereby providing morphological evidence for the diagnosis of hiatal hernia (HH).

Methods

This retrospective study analyzed medical records of patients who underwent 24-hour esophageal pH-impedance monitoring at Sir Run Run Shaw Hospital, Zhejiang University School of Medicine from November 2022 to December 2024. Eligible patients completed high-resolution manometry (HRM), upper gastrointestinal endoscopy, and enhanced CT scans of the upper abdomen/chest within six months of monitoring. Exclusion criteria included the presence of typical reflux symptoms, abnormal reflux parameters (acid exposure time >4% or DeMeester score >14.72), diagnosis of HH by endoscopy or imaging, abnormal HRM findings, previous diaphragmatic or HH surgery, and incomplete medical records. HSA and ESA were measured using multidetector computed tomography (MDCT) with multiplanar reconstruction technique, and the ESA/HSA ratio was calculated. An independent samples t-test was used to compare sex differences, and Pearson correlation analysis was used to assess the correlation between age and HSA/ESA. A two-tailed P<0.01 was considered statistically significant.

Results

A total of 39 subjects were included, comprising 13 males (33.3%) and 26 females (66.7%), with a mean age of (52±14) years. HSA was (228.4±52.9) mm2, ESA was (140.8±42.1) mm2, and the ESA/HSA ratio was 0.61±0.10. No significant sex differences were observed in HSA [males (245.6±48.3)mm2 vs females (222.5±54.1)mm2] or ESA [males (145.2±39.8) mm2 vs females (135.4±43.5)mm2]. Age was not significantly correlated with HSA (r=0.306, P=0.059) or ESA (r=0.348, P=0.030).

Conclusion

This study reports for the first time the normal reference values for HSA and ESA and the ESA/HSA ratio in healthy adults. The ESA/HSA ratio demonstrates good stability and may serve as a novel morphological indicator for assessing the functional status of the esophageal hiatus, providing a reference for the accurate diagnosis of HH.

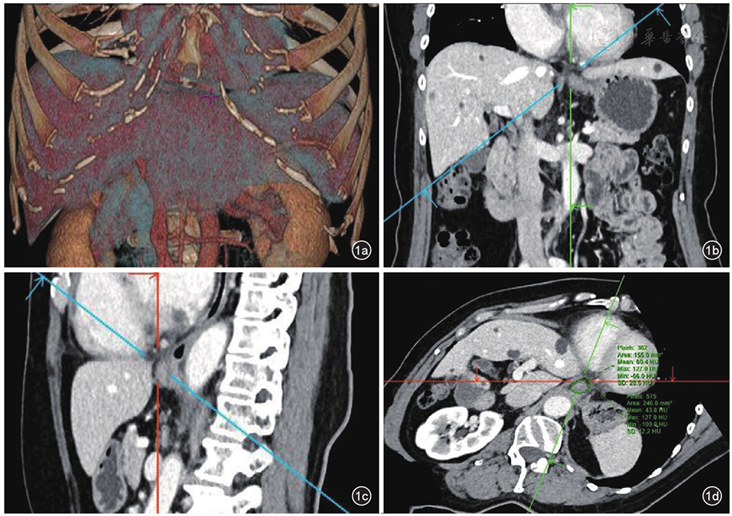

图1 多层螺旋CT(MDCT)图像的多平面重建(MPR),用于测量一位代表性患者的食管裂孔面积(HSA)和食管横截面积(ESA)。图a:MDCT MPR总览图。图b:斜冠状位图像,显示定义斜轴平面的蓝线,该平面与食管裂孔的右、左边界相交。图c:矢状位图像,显示定义斜轴平面的蓝线,该平面与食管裂孔的前、后边界相交。图d:得到的双斜校正平面,显示食管裂孔平面及手动定义的感兴趣区域,用于面积定量测量。
表1 39名健康受试者食管参数的描述性统计分析
表2 不同性别间食管裂孔面积与食管横截面积的比较(mm2±s
1
嵇振岭. 膈肌解剖异常类疾病的诊断和处理 [J]. 外科理论与实践, 2024, 29(4): 296-299.
2
Alsahafi MA, Alajhar NA, Almahyawi AO, et al. The prevalence and risk factors for hiatal hernia among patients undergoing endoscopy: a retrospective analysis [J]. Saudi Med J, 2023, 44(5): 509-512.
3
Kim J, Hiura GT, Oelsner EC, et al. Hiatal hernia prevalence and natural history on non-contrast CT in the Multi-Ethnic Study of Atherosclerosis (MESA) [J]. BMJ Open Gastroenterol. 2021, 8(1): e000565.
4
陈双, 周太成. 食管裂孔疝解剖学观点 [J]. 临床外科杂志, 2019, 27(9): 745-747.
5
Yu HX, Han CS, Xue JR, et al. Esophageal hiatal hernia: risk, diagnosis and management [J]. Expert Rev Gastroenterol Hepatol, 2018, 12(4): 319-329.
6
Granderath FA. Measurement of the esophageal hiatus by calculation of the hiatal surface area (HSA). Why, when and how? [J]. Surg Endosc, 2007, 21(12): 2224-2225.
7
Shamiyeh A, Szabo K, Granderath FA, et al. The esophageal hiatus: what is the normal size? [J]. Surg Endosc, 2010, 24(5): 988-991.
8
Moten AS, Ouyang W, Hava S, et al. In vivo measurement of esophageal hiatus surface area using MDCT: description of the methodology and clinical validation [J]. Abdom Radiol (NY), 2020, 45(9): 2656-2662.
9
卢健, 朱敬荣, 嵇振岭, 等. 多排螺旋CT多平面重建技术在测量食管裂孔表面积中的应用 [J]. 东南大学学报(医学版), 2019, 38(4): 647-650.
10
Shi ZQ, Qi CZ, Chen QL, et al. Measurement of oesophageal hiatus surface area by multiplanar reconstruction of MDCT: relationship with lower oesophageal sphincter pressure and acid reflux [J]. Clin Radiol, 2023, 78(10): 789-794.
11
Jones MP, Sloan SS, Rabine JC, et al. Hiatal hernia size is the dominant determinant of esophagitis presence and severity in gastroesophageal reflux disease [J]. Am J Gastroenterol, 2001, 96(6): 1711-1717.
12
Kushner BS, Awad MM, Mikami DJ, et al. Endoscopic treatments for GERD [J]. Ann N Y Acad Sci, 2020, 1482(1): 121-129.
13
Ihde GM. The evolution of TIF: transoral incisionless fundoplication [J]. Therap Adv Gastroenterol, 2020, 13: 1756284820924206.
14
Ouyang W, Dass C, Zhao H, et al. Multiplanar MDCT measurement of esophageal hiatus surface area: association with hiatal hernia and GERD [J]. Surg Endosc, 2016, 30(6): 2465-2472.
15
Chan DL, Huang BW, Yip J, et al. CT oesophageal hiatal surface area measurements: an objective and sensitive means of hiatal hernia detection [J]. Surgery Open Digestive Advance, 2023, 9: 100085.
16
Dass C, Dass G, Fisher S, et al. The effect of age and sex on esophageal hiatal surface area among normal North American adults using multidetector computed tomography [J]. Surg Radiol Anat, 2022, 44(6): 899-906.
